Tables

With tables, you can organize ordered pairs, quickly plot points for a particular function, or even run a regression to find a line or curve of best fit. Accessing the table settings from the circle icon at the top of each column allows you to tweak more than just the color: adjust the style (dots, connected, or both) or convert the entire table into movable points with just a click! Get started with the video on the right, then dive deeper with the resources and challenges below.

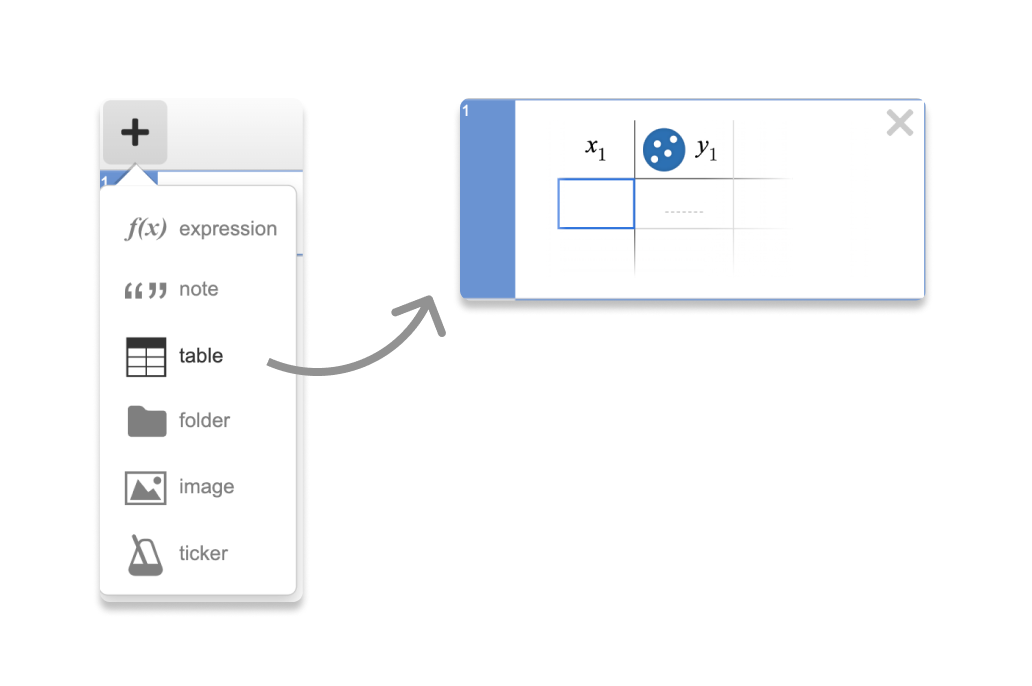

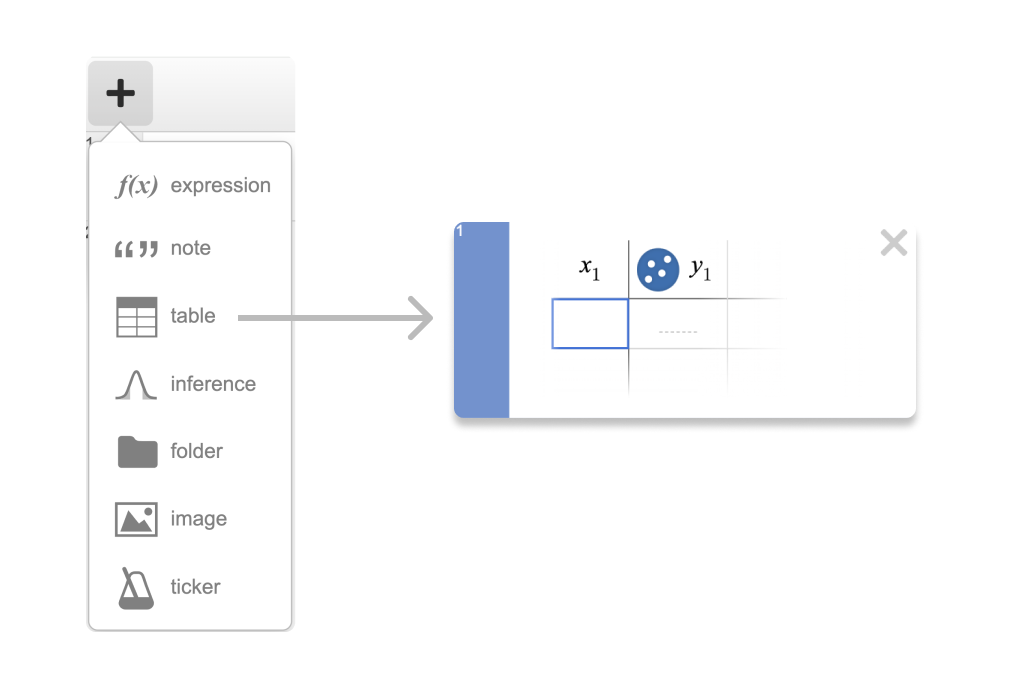

To get started with a blank table, open the Add Item menu and choose Table. You can also type table

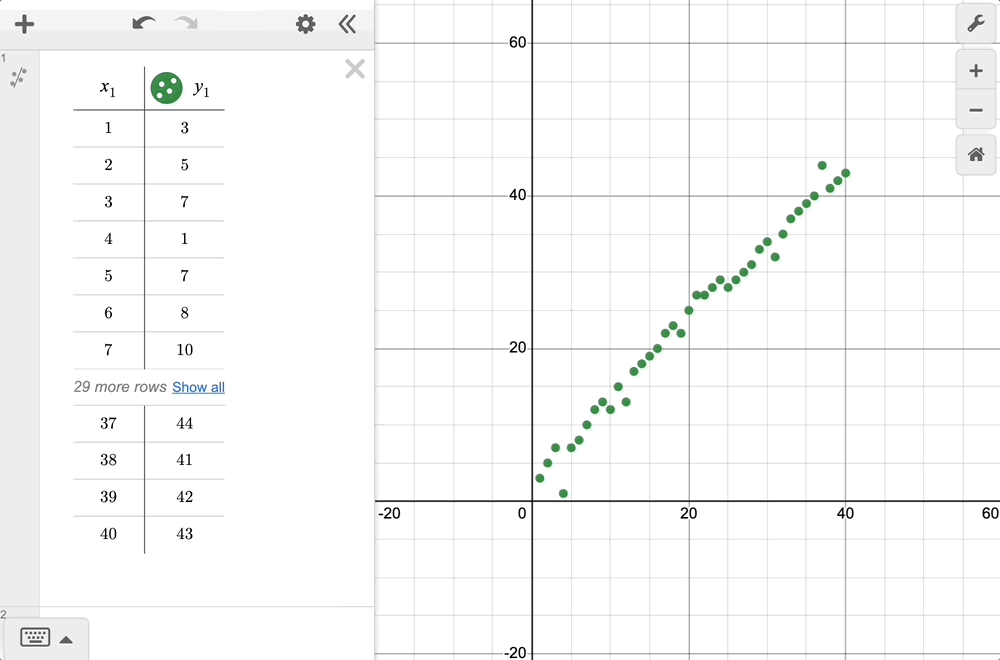

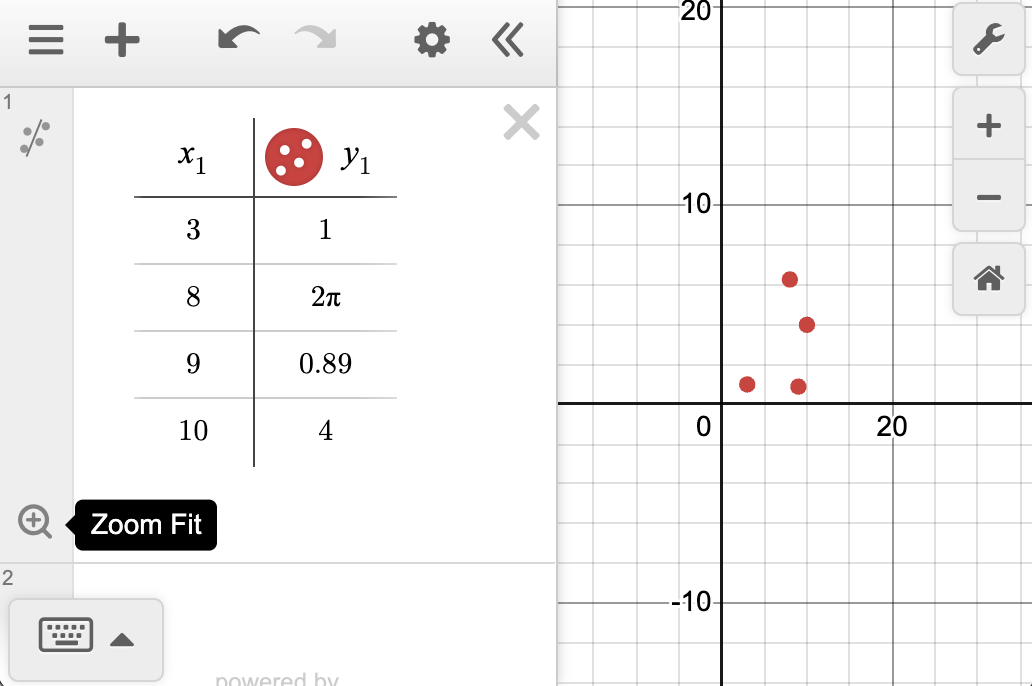

Enter values into the table and use the arrow keys to easily maneuver through the table. By default, the first two columns of a new table will be plotted (\(x_1\), \(y_1\)). Click on the zoom fit icon, which appears as a magnifying glass in the bottom left of the expression line, to automatically adjust the axis settings to fit the data.

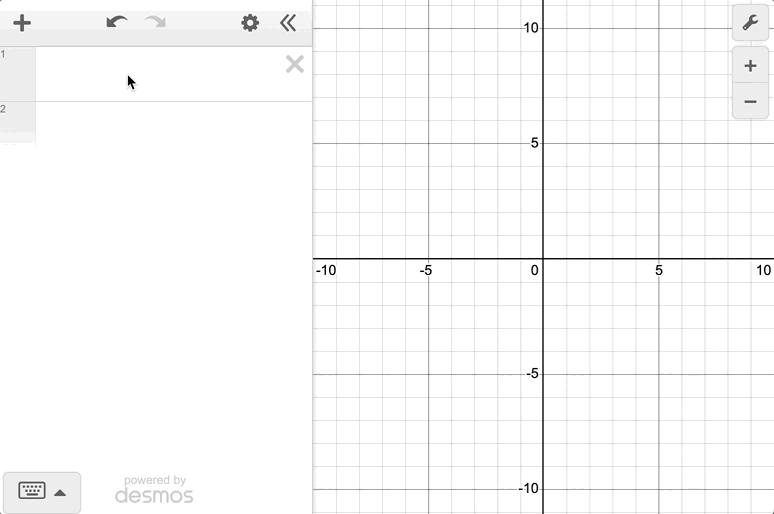

You can also input data from another source directly into Desmos. From a spreadsheet (such as Excel or Google Sheets), “copy” the table columns that you want to use, and then “paste” directly into a blank expression list and Desmos will automatically generate a table.

Note: The column header titles will not transfer and there is a maximum of 1000 rows that are able to be copy and pasted in a table. Copying and pasting more than 1000 rows will generate more than one table.

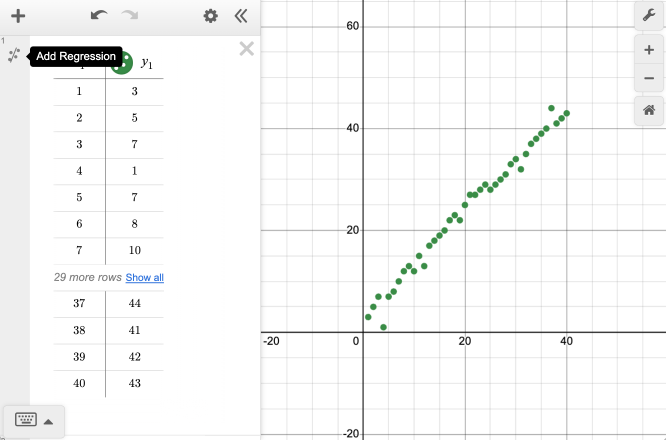

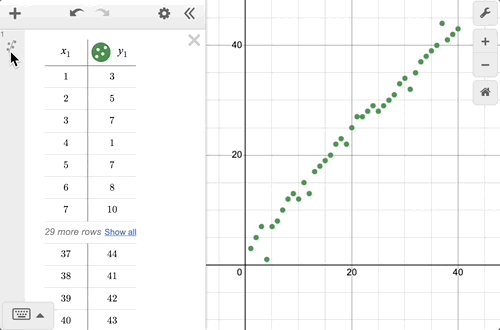

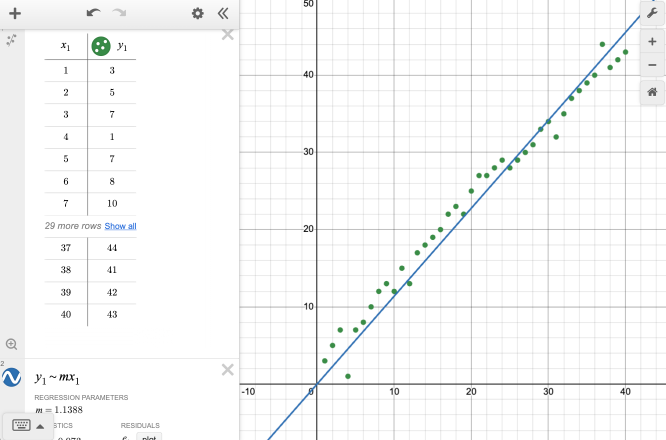

Once your data is in a table, create a regression by clicking the Add Regression icon to the left of your expression or open the options menu next to your \(y\) variable and press the Add Regression icon. This will automatically add a Linear Regression below your table.

Click on Linear Regression to open the dropdown menu and choose the model that best fits your data.

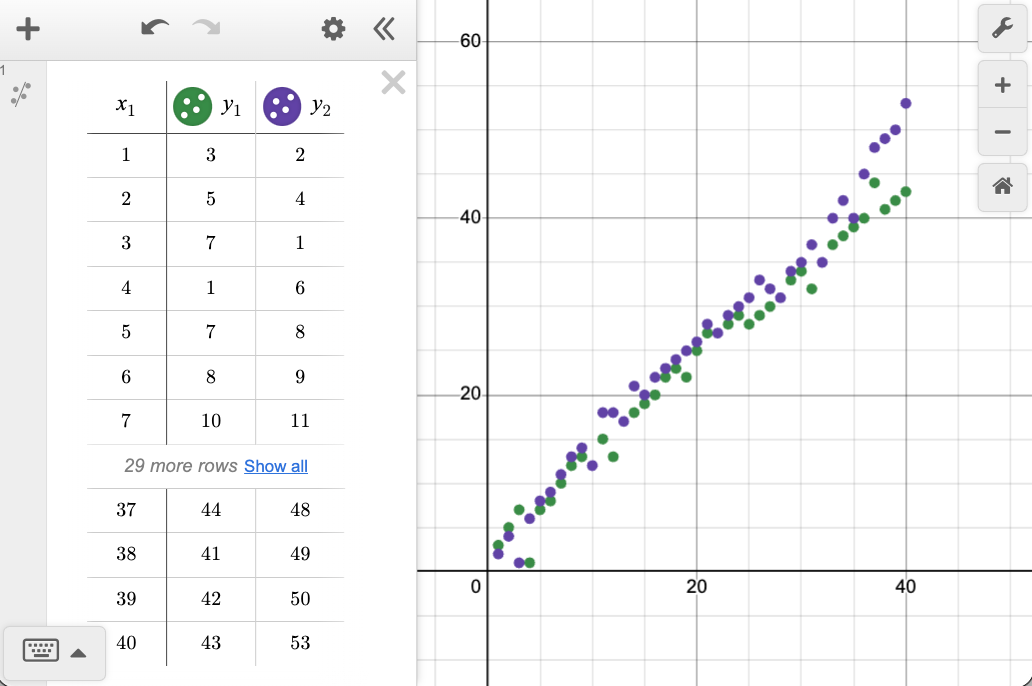

If you have multiple data columns for the same independent variable, a second dropdown will let you select which column to use in your model.

You can create a custom regression model by using the tilde symbol (~) instead of the equals sign (=) in a new line. Reference your table's column names to include the data in your model.

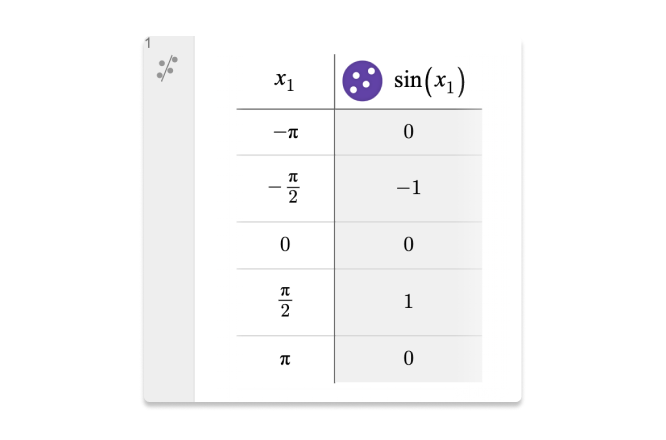

You can write rich math expressions in the cells, including things like \(\frac{\pi}{2}\).

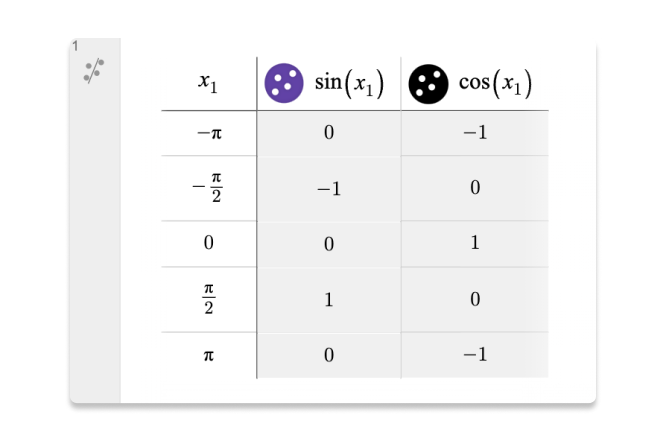

Tables can also help you compare two functions side by side by adding another column and entering another function into the new heading.

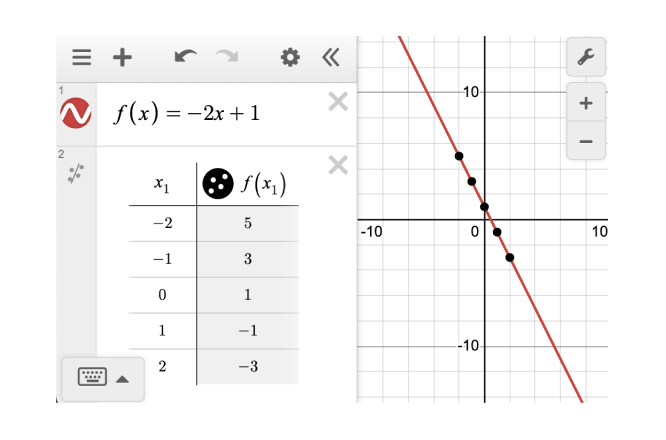

You can define a function in an expression line and use function notation in your table to evaluate based on your input values.

Expressions, coordinate points, equations, and functions can be converted to tables using Create Table. To start, click the Edit List button. If the expression line contains an available expression, a Create Table button will appear. Click on it to add a table of values that match the expression line.

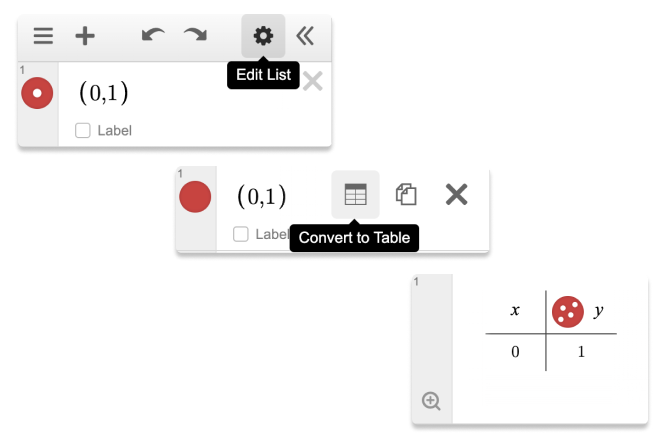

Single Point

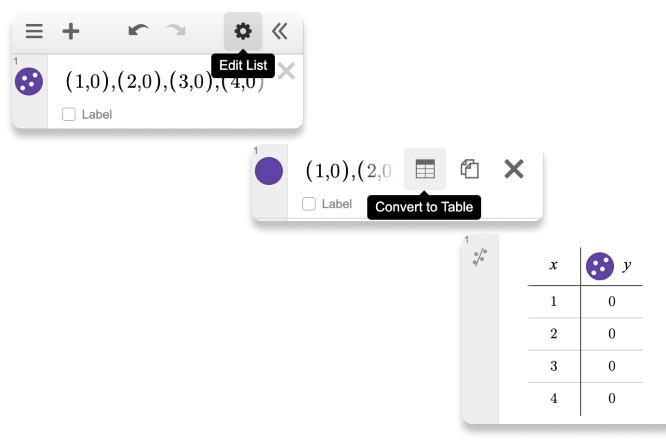

List of Points

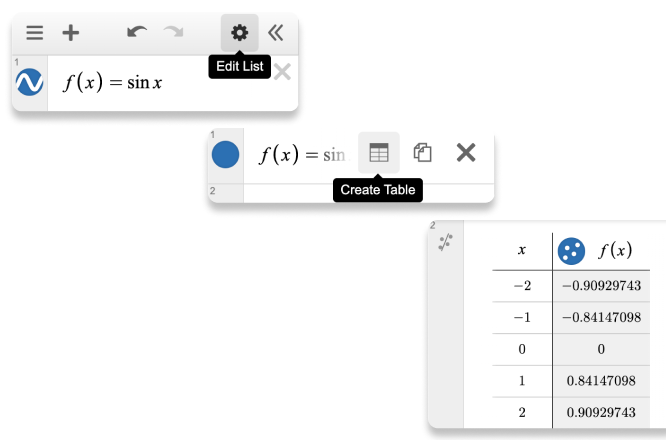

Function Notation

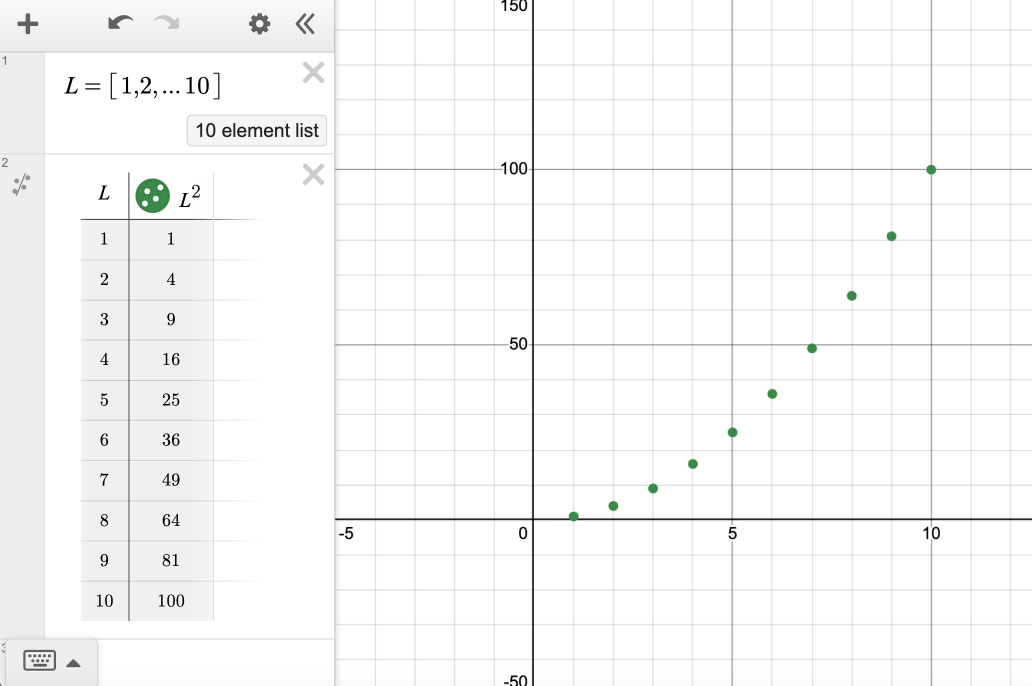

You can externally define any column in a table (including the first column) by referencing any list of values in the column header. Select the image to change values in list L and watch how the table changes.

If a column header contains a calculation, the column will fill in with the computed values.

Any cell that contains a computed value can’t be edited, so it will show with a gray background.

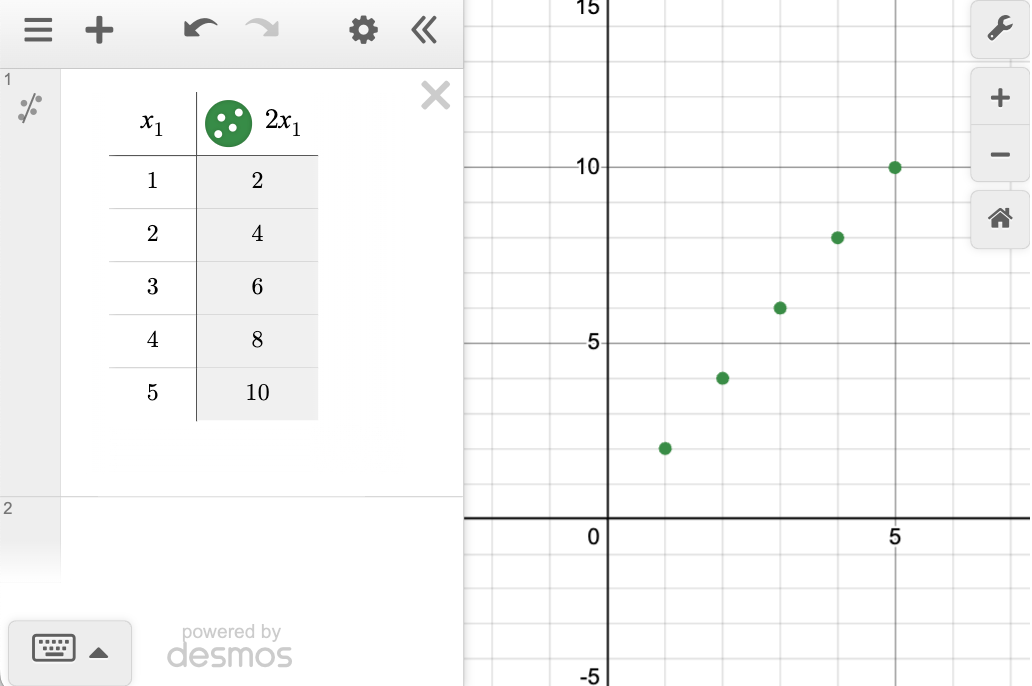

For example, you can calculate the dependent column to be 2 times the values in the \(x_1\) column.

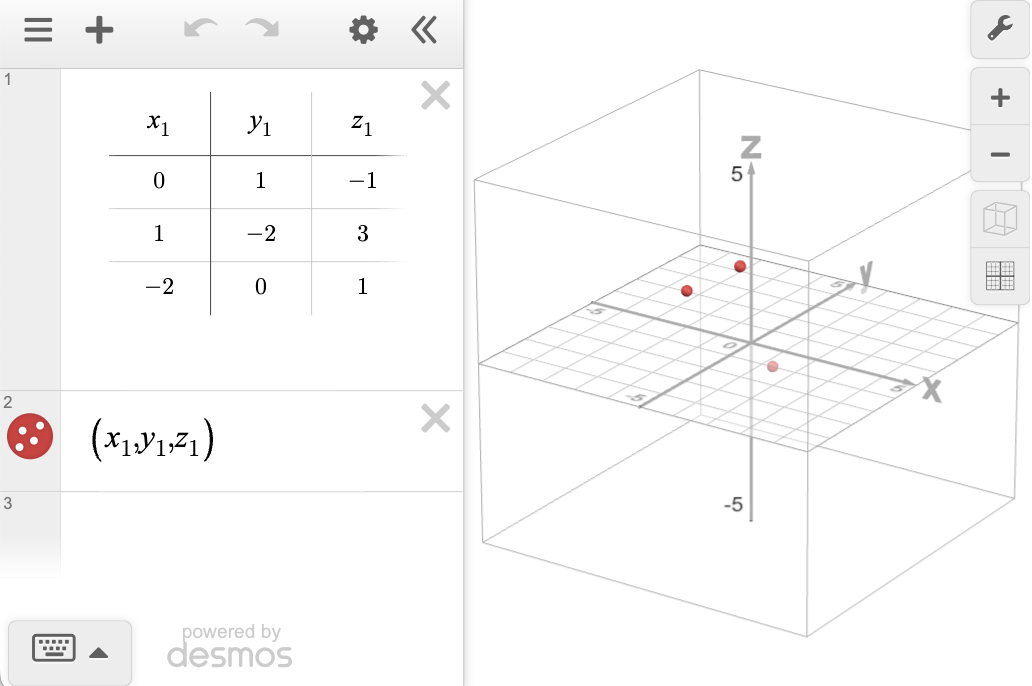

In 3D, points do not automatically plot from a table. To plot points from a table, on a new line in the expression list type the header values of your table as coordinates, such as \((x_1,y_1,z_1)\). Explore more by clicking on the graph.
